Enterprise RFID Hardware

C6100 Long-range RFID Handheld Terminal

Purpose-built for industrial scanning. Up to 20m read range, 200 tags/second, and 14+ hours of battery life.

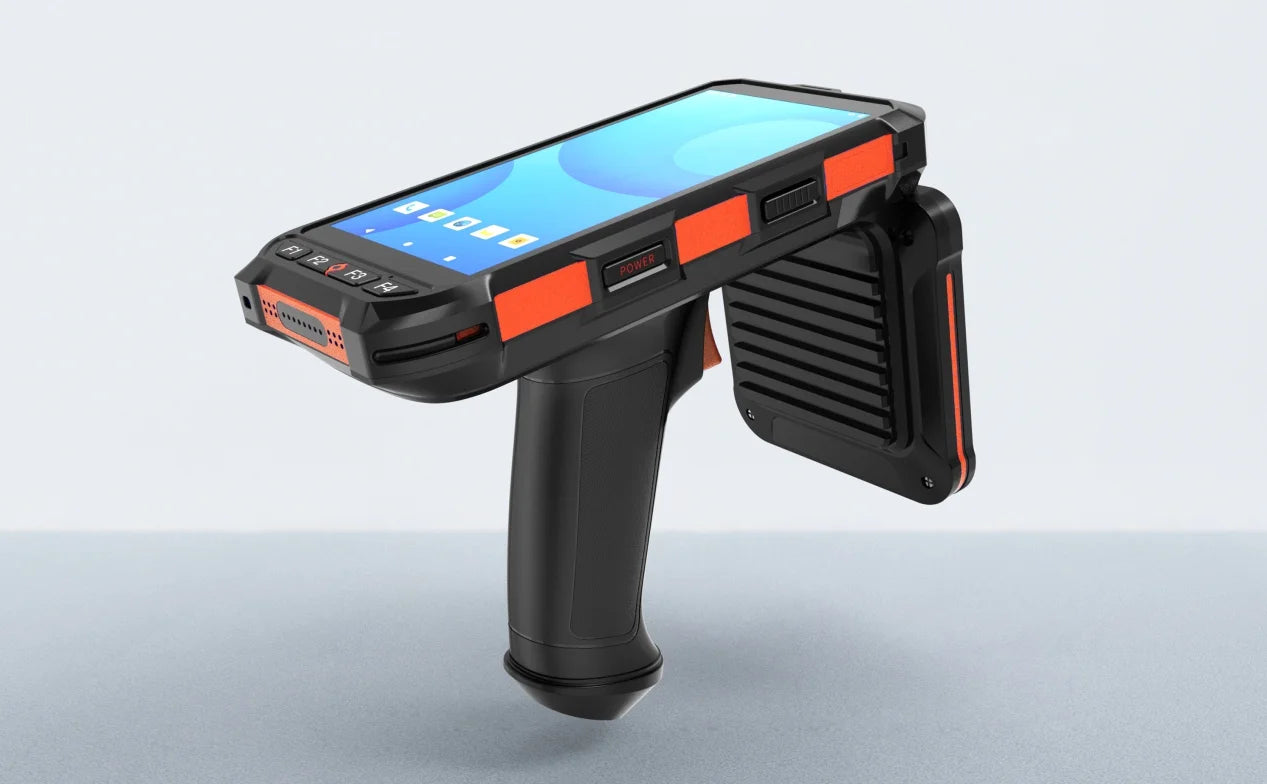

C6100 RFID handheld terminal
20m

20m Read Range

No line-of-sight scanning indoors or outdoors.

200/s

200 Tags/sec

Scan thousands of tags in seconds.

14h+

14+ Hour Battery

8000mAh battery for all-day operation.

IP65

IP65 Rated

Dust-tight and water-resistant.

Technical Specifications

Built for the Warehouse Floor

Every component is specified for industrial reliability.

Performance

CPUCortex A73, 2.0GHz Octa-core
RAM4GB
Storage64GB ROM, expandable to 256GB
OSAndroid 10/13

RFID Capabilities

Frequency865-868 MHz or 920-925 MHz
ProtocolEPC C1 GEN2 / ISO 18000-6C
Read Range0-20m, environment dependent
AntennaCircular, 4dBi

Connectivity

Wi-Fi2.4G/5G dual-band, 802.11a/b/g/n/ac
Bluetooth4.2
Cellular4G LTE, 3G WCDMA, 2G GSM
GPSEmbedded A-GPS, +/-10m accuracy

Environment

Battery8000mAh, 14+ working hours
Operating Temp-20C to +50C
Humidity5%-95% non-condensing
FCC ID2AKFL-C6100

Ready to start scanning?

Purchase the C6100 and start your DropRFID workflow.
